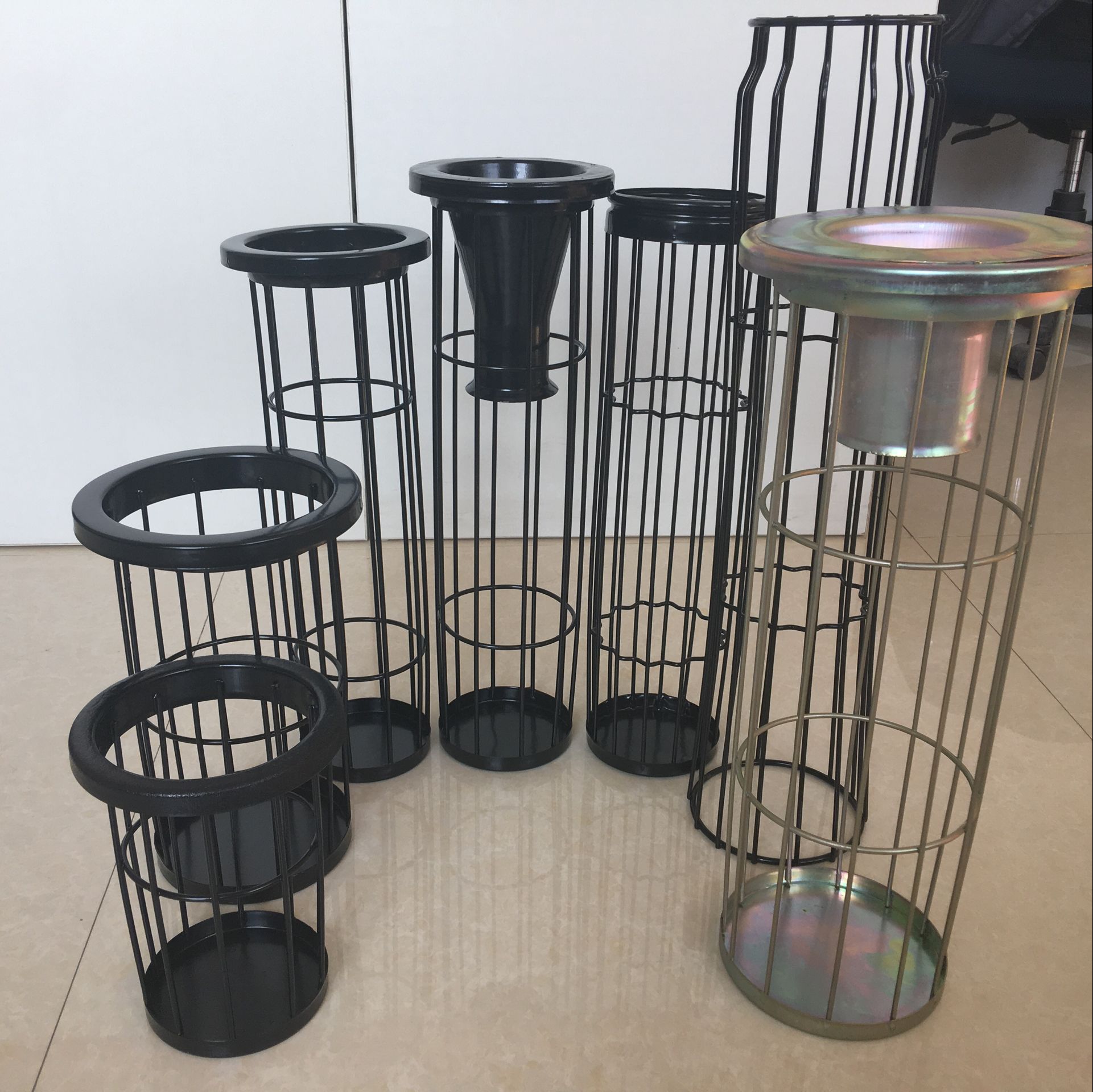

Bag cage with venturi pipe galvanized dust collector filter bag

Dust bag and dust skeleton are the core components of the bag dust collector,

and the reasonable combination of its specifications and models directly affects

the purification efficiency, operating stability and service life of the dust collector.

1. Diameter (Diameter, D) : The diameter of the dust removal skeleton is the

same as that of the dust removal bag to ensure that the two fit perfectly and

ensure air tightness.
2. Length (Length, L) : The length of the dust removal skeleton should be matched

with the length of the bag, and the design of the flight clearing mechanism should

be considered to ensure that the pulse valve has a wide coverage and good ash

cleaning effect.
3. Number of turns and spacing: The number of turns and spacing of the skeleton

are customized according to the design of the dust collector and the length of the

bag, to ensure that the skeleton strength is sufficient, the support is stable, and it

is conducive to ash cleaning.
4. Material and surface treatment: the skeleton material is usually carbon steel,

stainless steel, silicone spraying, etc., according to the working conditions, the

surface treatment includes galvanized, spray, silicone, etc., to improve the corrosion

resistance and service life of the skeleton.
